Industrial PC - EDGE Computer - ECCO 6000

0.00 €
0% Off

Industrial PC - EDGE Computer - ECCO 6000

3 https://thunderbook.es/web/image/product.template/3195/image_1920?unique=8c9920c
Days
:
Hours
:
Mins
:
Secs

    This combination does not exist.

    SKU:
    N/A

    • 3 years warranty
    • Technical Support
    • Fast delivery

    Industrial PCs - ECCO Series

    The ECCO line of industrial PCs from Thunderbook redefines standards in the field of computing for challenging industrial environments. This line is recognized for its excellent integration with cutting-edge graphics cards, enabling highly efficient and real-time image analysis through the use of its modern GPUs and VPUs.


    These computing platforms stand out for their ability to be customized and scaled, offering a modular design that facilitates growth and adaptation as needs evolve. Their catalog includes a variety of options, conceived to provide specific solutions for the demands of different industrial sectors.


    In the specific field of computer vision, Thunderbook's industrial computing systems have become a key element. With impressive performance and carefully tuned features, they are designed to meet and exceed your expectations, ensuring successful outcomes in the execution of your projects.

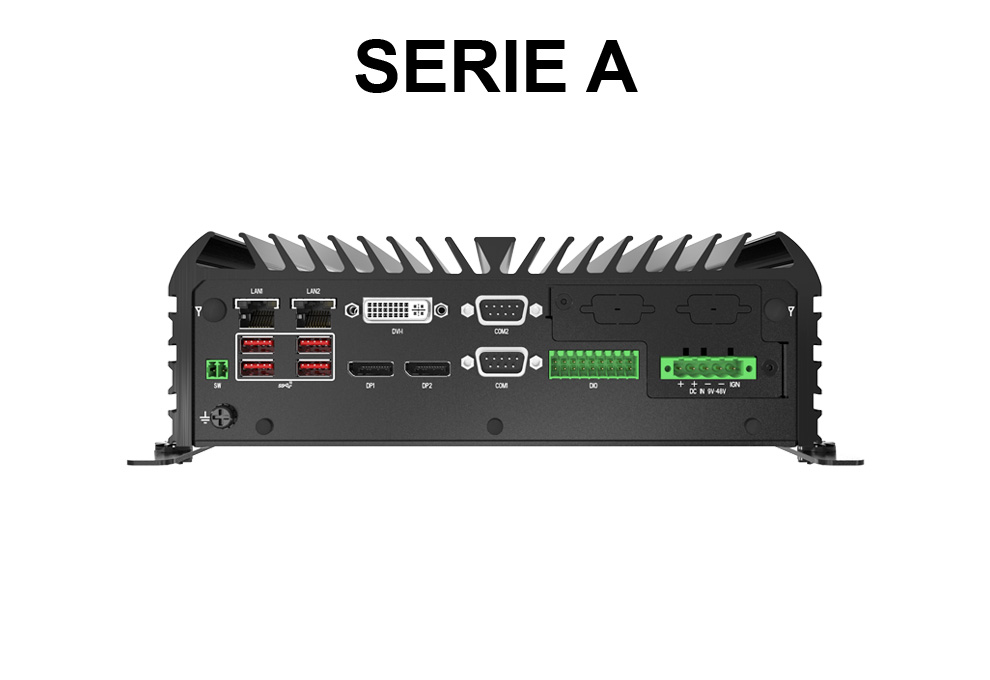

    PC INDUSTRIAL ECCO 6000 - SERIE A


    • CPU: Supports Intel 10th Gen CML S processors (LGA 1200, 65W/35W TDP), including Intel Xeon and Intel Core variants (i9, i7, i5, i3).
    • Chipset: Intel W480E.
    • System Memory: 2 DDR4 SODIMM slots, 2666/2933MHz, with maximum capacity up to 64GB.
    • Graphics: Intel UHD Graphics 630 or NVIDIA GTX 2060 GPU or 4x Vision Processing Unit VPU (Hailo 8)
    • Storage: 3x 2.5" SATA HDD bays (1 internal and 2 hot-swappable) with support for RAID 0, 1, 5; 1x M.2 (E Key PCIe x1 USB 2.0 2230).
    • Expansion: 2x full-size Mini PCIe slots, 1x M.2, and various expansion module options.
    • Expansion Modules: 4x Gigabit Ethernet RJ45, M12 or POE, 2x Ethernet 10Gbe, 4x USB, 1x 4G/5G Modem (includes 2x SIM slots)
    • I/O and connectivity​:
      • Triple Independent Display: 2x DisplayPort, 1x DVI-I.
      • 2x Intel GbE with support for Wake-on-LAN and PXE.
      • 8x RS-232/422/485 (6 internal and 2 external), 6x USB 3.2 Gen 2, 3x USB 3.2 Gen 1 (1 internal and 2 external), 8x DI + 8x DO isolated.
      • 5 antenna holes for WiFi, 1 power switch, AT/ATX switch options, among others.
      • 2x SIM slots
      • 1x Audio-in and Audio-out
      • 2x CAN 2.0 A/B via internal pins
      • 1x Ignition Switch and 1x Delay
    • Power: Wide-range power input from 9 to 48VDC, supports AT/ATX mode.
    • Operating Temperature: -25°C to 70°C (with 35W/65W CPU).
    • Certifications and safety: TPM 2.0, UL listing, CE and FCC Class A certifications.
    • Physical dimensions: 240 (W) x 261 (D) x 79 (H) mm, weight 3.5 kg.

    Several models are listed with specific configurations, such as the number and type of LAN and USB ports, and optional accessories such as power adapters and power cables.


    This system is characterized by its robustness, wide customization options, and ability to handle challenging operational environments, making it suitable for advanced industrial and enterprise applications.

    PC INDUSTRIAL ECCO 6000 - SERIE B


    Includes the same features as the ECCO-6000 - Series A but with additional Expansion: 1x PCIe x16, 1x PCI or 2x PCIe x16 or 2x PCI (Optional). Also with dimensions of 240 x 261 x 126.8 mm and a weight of 5.6 kg.

    Possible configurations are:

    1) 1x PCI and 1x PCIe x16 (8 lanes), 4x 2.5” SATA HDD Bays (Height=7mm), Active dedicated fan

    2) 1x PCI and 1x PCIe x16 (8 lanes), 4x 2.5” SATA HDD Bays (Height=15mm), Active dedicated fan

    3) RTX 2060 GPU (via PCIe x16 slot), Special power supply for GPU, Active dedicated fan

    PC INDUSTRIAL ECCO 6000 - SERIE C


    Includes the same features as the ECCO-6000 - Series A but with additional Expansion: 1x PCIe x16, 1x PCI, and is distinguished by having two power inputs. Also with dimensions of 240 x 261 x 126.8 mm and a weight of 5.6 kg.

    Possible configurations are:

    1) 1x PCIe x16, 4x U.2 15mm NVMe SSDs hot-swappable, Active dedicated fan

    2) 1x PCIe x16, 4x U.2 15mm NVMe SSDs hot-swappable, Active dedicated fan, RAID support

    3) 1x PCIe x4 (1 lane), 8x U.2 15mm NVMe SSDs hot-swappable, Active dedicated fan, RAID support

    4) RTX 2060 GPU (via PCIe x16 slot), Special power supply for GPU, Active dedicated fan, 4x U.2 15mm NVMe SSDs hot-swappable, Hardware RAID support

    5) RTX 2060 GPU (via PCIe x16 slot), Special power supply for GPU, Active dedicated fan, 2x U.2 15mm NVMe SSDs hot-swappable


    The main differences between these models are:

    CPU and Processor Support

    • All models support Intel 10th Gen CML S processors (up to 65W/35W TDP) and use the Intel® W480E chipset.
    • Capability to handle processors with up to 10 cores in several models.

    System Memory

    • All have 2x DDR4 SODIMM slots supporting up to 64GB at 2666/2933MHz.

    Graphics

    • The ECCO 6000 Series B and C models can include a dedicated NVIDIA GeForce RTX 2060 Super GPU, while other models use integrated Intel graphics.

    Storage

    • Significant variations in the quantity and type of storage bays.
    • ECCO 6000 Series B and C focus on NVMe flash storage with hardware RAID.

    Expansion

    • Different configurations of Mini PCIe and PCI/PCIe slots.
    • ECCO 6000 Series B and C focus on graphical expansion with dedicated GPU.

    I/O and Connectivity

    • Variations in RS-232/422/485 ports, USB, and display outputs.
    • ECCO 6000 Series C offers more video output options.

    Power

    • All support a wide input voltage range (9 to 48VDC) and AT/ATX modes.
    • ECCO 6000 Series C features two power inputs.

    Physical Dimensions and Weight

    • Differences in size and weight reflect variations in capacity and space usage.

    Specific Applications

    • ECCO 6000 Series C is geared toward high-performance graphics and computing applications.
    • ECCO 6000 Series C focuses on high-performance flash storage.

    In summary, each model is optimized for different applications and needs, with variations in graphics, storage, expansion options, and connectivity. This allows users to select the model that best suits their specific performance and functionality requirements.

    Product Comparison Table:


    FeatureECCO-6000-SERIE A
    ECCO-6000-SERIE B
    ECCO-6000-SERIE C



    Supported CPUIntel Xeon W-1290TE, 10 Cores, 20MB Cache, up to 4.5 GHz
    Intel Xeon W-1270TE, 8 Cores, 16MB Cache, up to 4.4 GHz
    Intel Xeon W-1250TE, 6 Cores, 12MB Cache, up to 3.8 GHz
    Intel Core i9-10900E, 10 Cores, 20MB Cache, up to 4.7 GHz
    Intel Core i9-10900TE, 10 Cores, 20MB Cache, up to 4.5 GHz
    Intel Core i7-10700E, 8 Cores, 16MB Cache, up to 4.5 GHz
    Intel Core i7-10700TE, 8 Cores, 16MB Cache, up to 4.4 GHz
    Intel Core i5-10500T, 6 Cores, 12MB Cache, up to 4.2 GHz
    Intel Core i5-10500TE, 6 Cores, 12MB Cache, 3.7 GHz
    Intel Core i3-10100T, 4 Cores, 6MB Cache, up to 3.8 GHz
    Intel Core i3-10100TE, 4 Cores, 9MB Cache, up to 3.6 GHz
    SameSame
    ChipsetIntel® W480ESameSame
    Memory2x DDR4 2666/2933MHz SODIMM, Max. 64GBSameSame
    Storage3x 2,5” SATA HDD , 1x M.23x 2.5” SATA HDD, 1x M.2
    Up to 4x 2.5” SATA HDD Bays
    3x 2.5” SATA HDD, 1x M.2
    Up to 8x SSD HDD Bays
    GraphicsIntel® UHD Graphics 630NVIDIA GeForce® RTX 2060 Super Graphics engine
    NVIDIA GeForce® RTX 2060 Super Graphics engine
    I/OVarious options including USB 3.2, RS-232/422/485SameSame
    Expansion2x Full-size Mini PCIeSameSame
    Power9 to 48VDC, AC/DC power adapter optionsSame
    Additional options for GPU expansion
    Same
    Additional options for GPU expansion
    Operating Temperature-25°C to 70°CSameSame
    Dimensions and Weight240 (W) x 261 (D) x 79 (H) mm
    3,5 kg
    240 (W) x 261 (D) x 126.8 (H) mm
    5,6 kg
    5.6 kg

    This table summarizes the main differences and similarities between the models. Each offers different options in terms of storage capacity, graphics support, and power configurations, making them suitable for different types of projects.
